Tank Vent Hardware: Compare Connections and Outlet Configurations

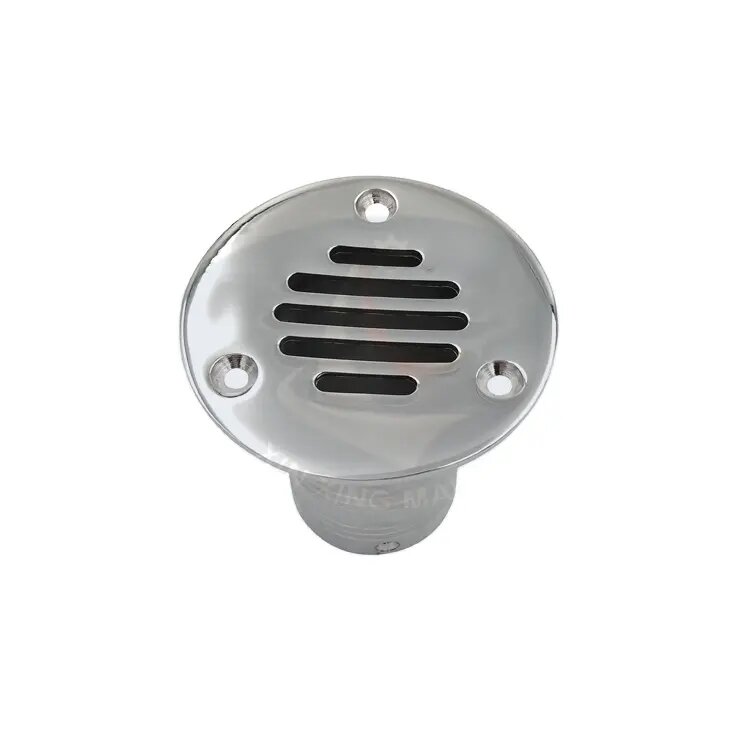

Identify the Vent Configuration
Tank vent hardware should be selected as part of the intended system design. This category presents configurations that may differ in body shape, outlet direction and mounting arrangement. For a CastingFoundries enquiry, identify the exact component and intended service. Do not assume that a matching external appearance establishes the required flow performance or makes one vent interchangeable with another.
Show the Installation Interfaces
Include the connection dimensions, mounting thickness, fixing arrangement and required outlet orientation on the drawing. Indicate any hose connection, thread or mating component that must be considered. If a screen or other internal feature is required, describe it explicitly. A section drawing can help distinguish the external casting profile from the internal passage and assembled components.
Specify Material and Inspection Needs
Confirm the body material and the materials of any supplied internal or sealing components. Describe the exposed finish and identify surfaces needing dimensional inspection. Performance and service requirements should be recorded separately from the appearance specification. Obtain the relevant approval and test information for the actual system application rather than relying on the general product name.
Build the Quotation Package
Provide CastingFoundries with the selected vent, drawings, quantity and required documentation. State whether the order is for the body alone or for an assembled item with accessories. Include sample acceptance criteria and packaging requirements. Reviewing this information together allows the casting and assembly scope to be discussed without changing the customer’s system design.
Send your enquiry to CastingFoundries.
