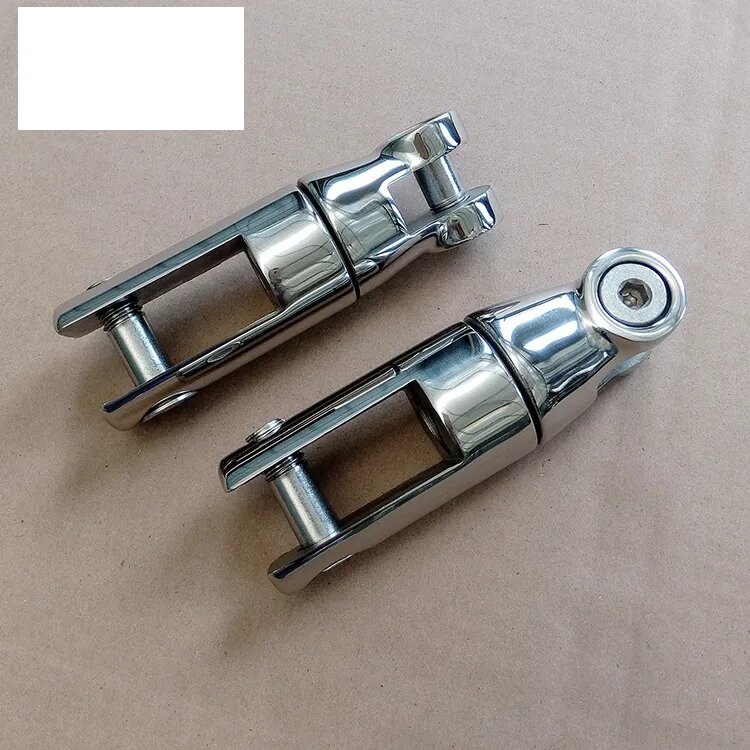

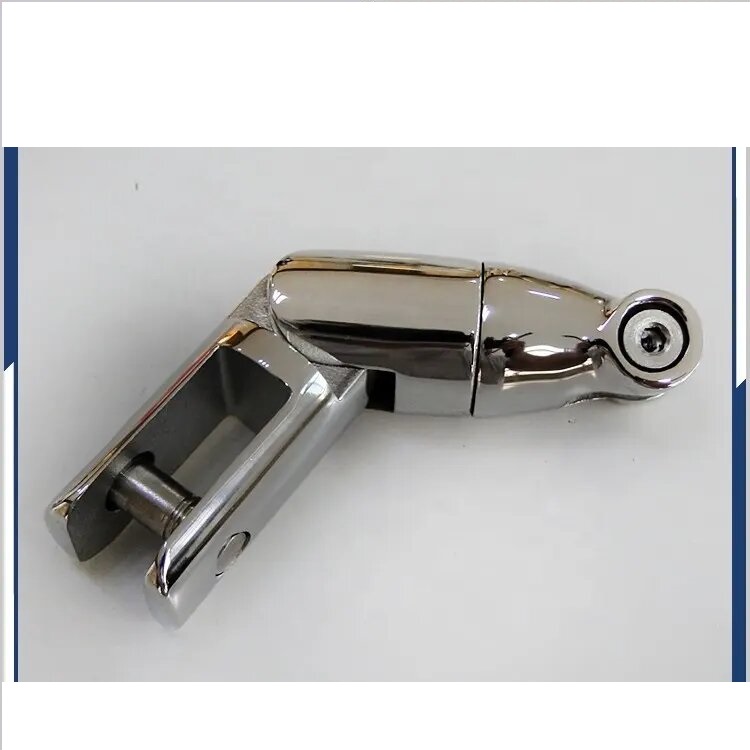

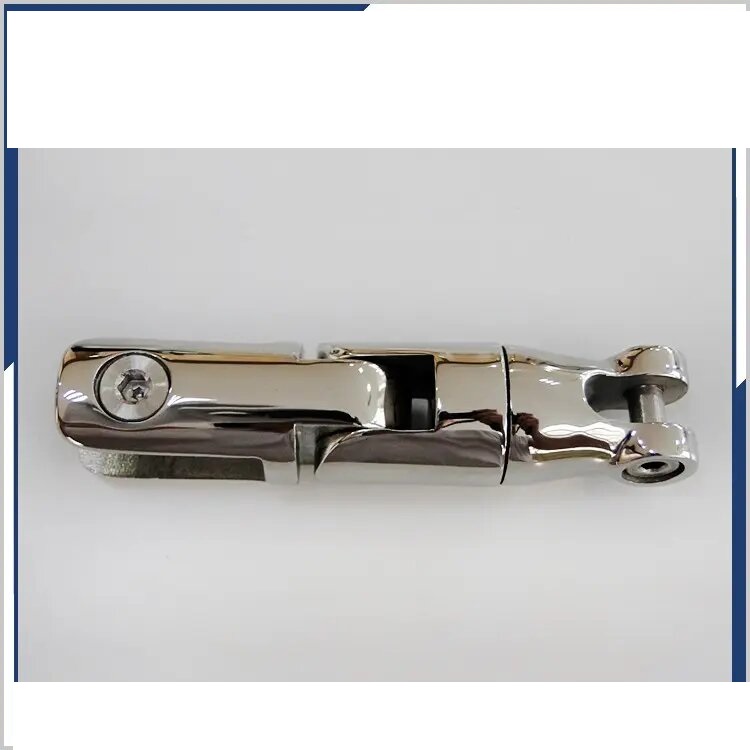

Anchor Swivel Hardware: Define the Connections and Assembly Requirements
Identify the Swivel Configuration
Anchor swivel products differ in their end connections and assembled arrangement. Begin with the exact product reference and the requirements of the intended system. CastingFoundries enquiries should include a drawing or approved specification that identifies the mating components. Visual similarity does not establish interchangeable connections or equivalent performance.
Show Each Connection Clearly
Record the connection openings, pin or fastener dimensions and space available around the adjoining parts. Include the assembled relationship between the swivel and its mating hardware. Where the request concerns only a component of the assembly, distinguish that item from the complete supplied product and list any accompanying parts.
Specify Material and Required Records
State the required materials, finish, marking and inspection documents. Application-specific capacity and suitability must be supported by the relevant design and acceptance requirements. These should be agreed for the selected assembly rather than inferred from a polished surface or stainless steel designation.
Prepare the Order Specification
Send CastingFoundries the swivel reference, drawing revision, quantity and complete supply scope. Include sample acceptance and documentation requirements. Keep any changes to the connections or assembly components attached to the same reference so the quotation, sample review and production requirements remain aligned.
Contact CastingFoundries about this component.
